Inox 304 Anti-Drop Rope Net High Security To Prevent Falling Objects Or People

Product Categories

Anping County Huihao Wire Mesh Manufacture Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Inox 304 Anti-Drop Rope Net High Security To Prevent Falling Objects Or People

Model Number : HH-CMSS

Certification : ISO9001-2015

Place of Origin : CHINA

MOQ : 10 square meters

Price : USD5-20/m2

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 30000 square meters per 10 days

Delivery Time : within 2 weeks

Packaging Details : rolls with plastic film, then put into wooden case

Name : Anti-Drop Rope Net

Material : Inox

Mesh type : Woven

rope diameter : 3.0mm

Safety net load bearing capacity : ⩾ 122 kg/m2

Mesh Size : 50 mm in common or customized

Customized : frame system design

Application : Prevent Falling Objects Or People

Contact Now

Inox 304 Anti-Drop Rope Net High Security To Prevent Falling Objects Or People

Introductions of Anti-Drop Rope Net

Anti-drop rope net is a safety net system designed to prevent falling objects or people from causing injury or damage. It's commonly used in construction, industrial sites, rock climbing, and event staging. Here’s a breakdown of its features and applications:

Material:Inox304 /316
Rope diameter:2.0mm,2.4mm,3.2mm in common
Opening size : 38mm*38mm,50mm*50mm, etc
Accessories securely using carabiners, hooks, or tension cables

Data sheet of the Anti-Drop Rope Net

Rope mesh	Wire Rope dia		Rupture Stress(W×H)		Rupture Stress
Item no	inch	mm	inch	mm	lbs.
XY-32120	1/8	3.2	4.75 x 8.23	120 x 207.8	1,600
XY-32102	1/8	3.2	4 x 6.9	102 x 176.7	1,600
XY-3290	1/8	3.2	3.55 x 6.15	90 x 156	1,600
XY-3276	1/8	3.2	3 x5.2	76 x 131.6	1,600
XY-3251	1/8	3.2	2 x3.46	51 x88.3	1,600
XY-24102	3/32	2.4	4x6.9	102x176.7	920
XY-2490	3/32	2.4	3.55x6.15	90x 156	920
XY-2476	3/32	2.4	3 x 5.2	76x 131.6	920
XY-2460	3/32	2.4	2.4x 4.16	60x 104	920
XY-2451	3/32	2.4	2x3.46	51 x 88.3	920
XY-2076	5/64	2.0	3 x 5.2	76 x 131.6	676
XY-2060	5/64	2.0	2.4x 4.16	60 x 104	676
XY-2051	5/64	2.0	2 x 3.46	51 x 88.3	676
XY-2038	5/64	2.0	1-1/2 x 2.6	38 x 65.8	676
XY-1676	1/16	1.6	1.2 x2.08	76 x 131.6	480
XY-1651	1/16	1.6	2x 3.46	51 x 88.3	480
XY-1638	1/16	1.6	1-1/2 x 2.6	38 x 65.8	480
XY-1630	1/16	1.6	1.2x2.08	30 x 52	480
XY-1625	1/16	1.6	1 x 1.73	25.4 x 44	480
XY-1238	3/64	1.2	1-1/2x2.6	38 x 65.8	270
XY-1230	3/64	1.2	1.2 x 2.08	30 x 52	270
XY-1225	3/64	1.2	1 x 1.73	25.4 x 44	270
XY-1220	3/64	1.2	4/5 x 1.39	20 x 34.6	270

Features of the Anti-Drop Rope Net

Material – Made from high-quality stainless steel (usually AISI 316 or 304), offering excellent corrosion resistance.

Structure – Composed of interwoven steel ropes in different weave patterns (e.g., spiral, ring, or crimped mesh).

Flexibility – Despite being metal, it has some flexibility, making it suitable for dynamic structures.

Aesthetic Appeal – Provides a modern, sleek look with a semi-transparent effect.

Strength & Durability – Resistant to weathering, UV rays, and mechanical stress.

Inox 304 Anti-Drop Rope Net High Security To Prevent Falling Objects Or People

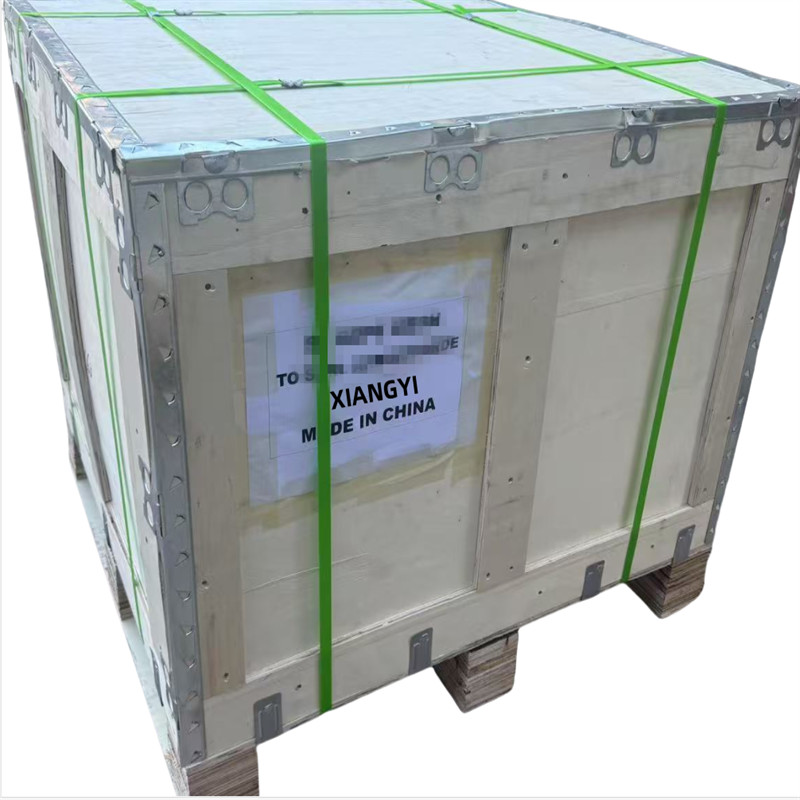

Packing of the Anti-Drop Rope Net

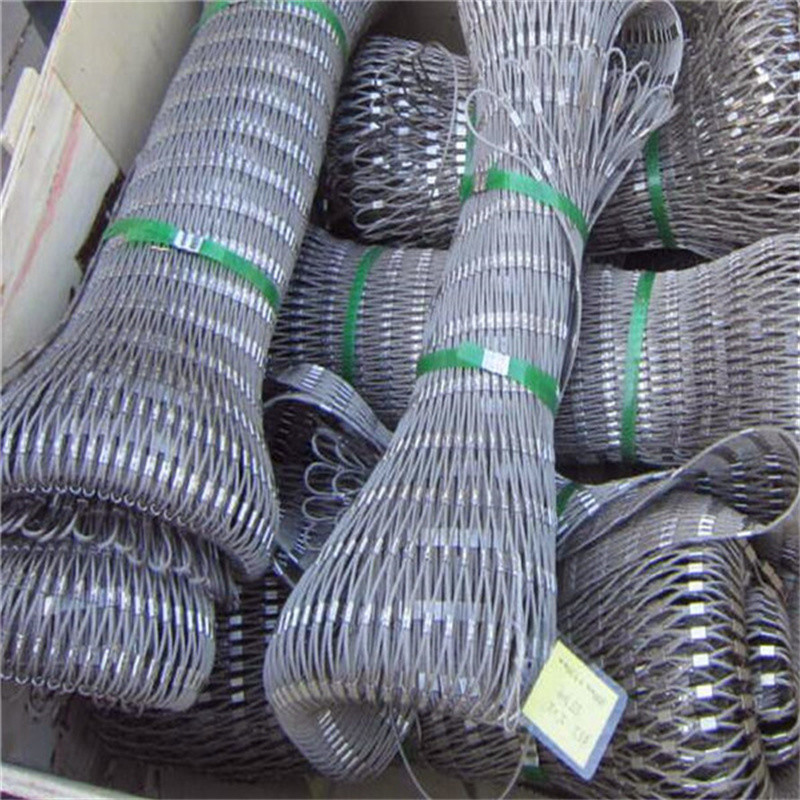

The rope mesh without frame would packed in rolls with plastic film, then put into wooden case

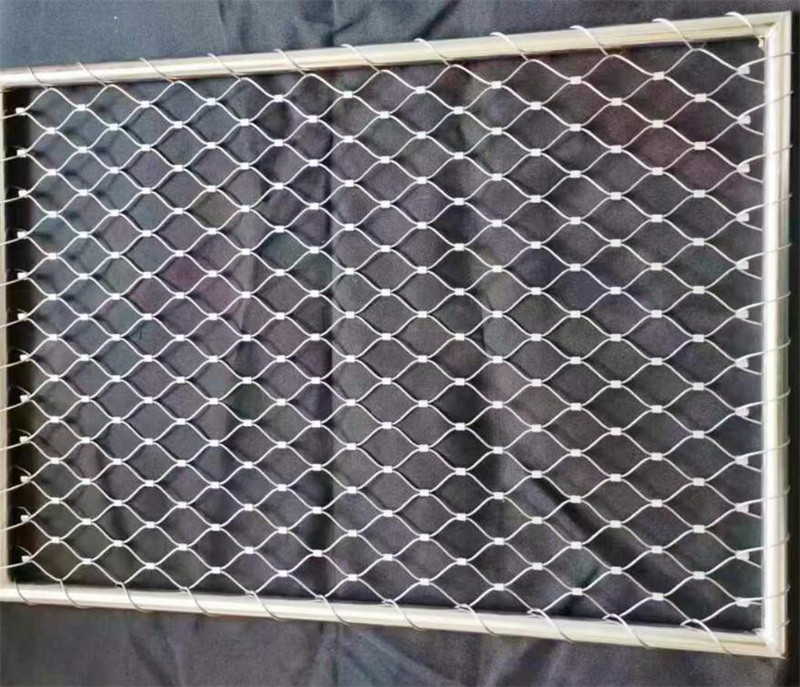

The rope mesh with frame would be fastene on pallets.

Inox 304 Anti-Drop Rope Net High Security To Prevent Falling Objects Or People

Application of the Anti-Drop Rope Net

Construction Safety Nets:
- Prevents tools/materials from falling off scaffolding.
- Complies with OSHA/EN safety standards.
Climbing & Adventure Sports:
- Used in rock climbing gyms, obstacle courses, and zip lines.
Industrial & Warehousing:
- Catches falling objects in factories or storage areas.
Event & Stage Safety:
- Protects performers or equipment in theaters or concerts.
Playground & Sports Nets:
- Ensures child safety in play areas.

Inox 304 Anti-Drop Rope Net High Security To Prevent Falling Objects Or People Images
